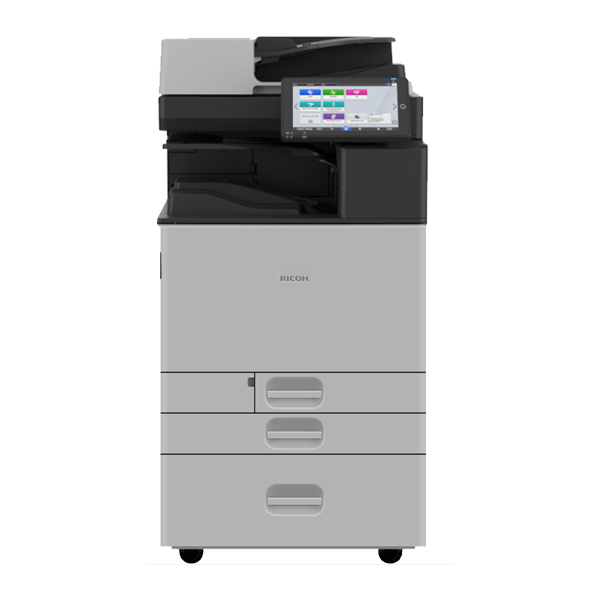

RICOH IM C3010

Configuration Console
Control Panel 10.1″ Smart Operation Panel
Color/Black & White Color
Output Speed Copy/Print 30 ppm B&W & FC (LTR)
First Page Out Time 4.0 seconds B&W 6.6 seconds Color
Warm-Up Time 25 seconds
Resolution 600 dpi
System Memory 4 GB RAM Mainframe + 4 GB RAM Panel/256 GB SSD
Duplexing Automatic (Standard)
Document Feeder Type Single Pass Document Feeder (SPDF)
Single Pass Document Feeder (SPDF) Original Capacity: 220 sheets
Original Size: (A6-A3, B8-B4)
Paper Weight: Simplex/Duplex: 38 – 220 g/m2 (A6 or larger); 64 – 220g/m2 (smaller than A6) (need to be updated)
Zoom Range 25% – 400% in 1% increments
Supported Paper Sizes 1st Paper Tray: (A4)
2nd Paper Tray: (A6-A3, B4-B6), Envelopes
Bypass: Up to A3 Envelopes
Custom Sizes: Width: (90 – 320 mm), Length: (148 – 1260 mm)
Supported Paper Weights Standard Trays: (60 – 300 g/m2)
Bypass Tray: (52 – 300 g/m2)
Duplex Unit: (52 – 169 g/m2)
Supported Paper Types Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Coated, Envelope, Label, Gloss
Standard Paper Capacity 1,200 sheets (2 x 550 sheets + 100-Sheet Bypass Tray)
Maximum Output Capacity 1,625 sheets
Maximum Monthly Volume 20000
Typical Electricity Consumption (TEC) 0.304 kWh/week
Power Consumption Less than 1,584 W; Sleep Mode: 0.3W
Dimensions W x D x H(587 mm x 685 mm x 963 mm)
Weight 99.3 kg

Printer Specifications
Processor Speed Intel Apollo Lake 1.3 GHz
Interfaces Standard: Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B
Option: Wireless LAN (IEEE 802.11a/b/g/n/ac)
Network Protocol TCP/IP (IPv4, IPv6)
Supported Operating Systems Windows® 8.1/10/11/Server2012/Server2012R2/Server 2016/Server 2019/Server 2022
Printer Languages Standard: PCL5c, PCL6, PostScript®3™ Emulation, PDF Direct Print Emulation
Print Resolution Up to 1200 x 1200 dpi
Scanner Specifications
Scan Speed (B&W & Full Color) 150 ipm (simplex)/300 ipm (duplex)
Scanning Resolution Up to 1200 dpi
Scan Area Up to(297 – 1200 mm)
File Formats Single Page: TIFF, JPEG, PDF, PDF/A, High Compression PDF, encryption PDF, OCR*
Multi Page: TIFF, PDF (Default), PDF/A, High Compression PDF, encryption PDF, OCR*
Scan Modes E-mail, Folder, USB, FTP
Footnotes *Requires optional OCR Unit Type M52
